HST 14164+5215

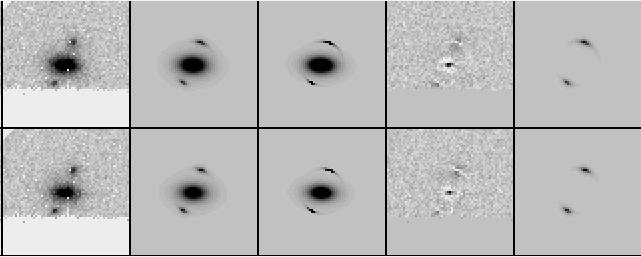

Observed	HST Model	MLE Model	Residual	Lensed source	Filter
					F814W i4.m0
					F606W v4.m0

HST 14164+5215 is a pair of images symmetrically placed around a brighter galaxy.
The lensing galaxy, has an apparent color (V-I)=2.0 mag.
The lensed source appears to be point-like with a color (V-I)=0.2 mag.
The impact radius is 0".06.
The image magnification is about 2.3 magnitudes, making each component about 0.8 mag brighter than the point-like source.
The model gives a very good fit with a normalized chi² of unity.

Name	HST 14164+5215
Equatorial(J2000)	14:16:25.2	+52:14:31	PA_V3=32^o.72
HST WFPC2	Groth :5090 1994-Mar-17
Dataset[g][x,y]	U26X0I01T[4][122,064]
Field:id lens galaxy	u26xi:0017
HST WFPC2 Filter	F814W		F606W
Exposure seconds	4 x 1100		4 x 700
log (integrated S/N Ratio)	3.42		3.32
Fitted Parameter	MLE	+/- rms	MLE	+/- rms
Sky Mag. (arcsec²)	22.247	0.003	22.799	0.003
Total Mag of lens galaxy	20.78	0.01	21.80	0.02
X centroid 0".1 Pix	122.43	0.04	122.67	0.05
Y centroid 0".1 Pix	64.40	0.02	64.57	0.03
Half-light radius	0".517	0".006	0".534	0".009
Orientation of light	87^o.5	0^o.8	88^o.2	1^o.0
Axis Ratio of the light	0.57	0.01	0.56	0.01
Mag. of lensed source	26.67	0.09	27.40	0.05
Source X offset 0".1	0.43	0.02	0.40	0.02
Source Y offset 0".1 Pix	0.91	0.03	0.87	0.04
Critical Radius	1".090	0".003	1".099	0".003
Axis Ratio Lens mass	0.96	0.01	0.98	0.01
Lens Orientation	- 45^o.0	3^o.4	- 61^o.5	5^o.0
Source half-light	0".013	0".003	0".010	0".001
Source Orientation	0^o.0	Fixed	0^o.0	Fixed
Source Axis-Ratio	1.00	Fixed	1.00	Fixed

Lens galaxy from MDS-Pipeline fit
